Islip Mill Footbridge

Description

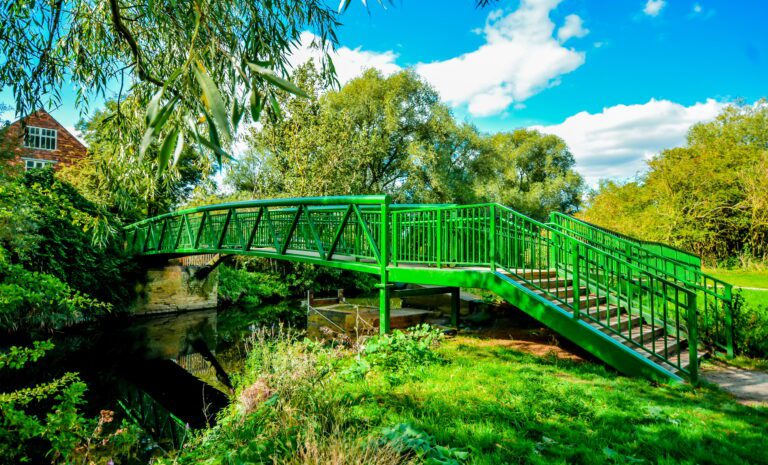

A 20m Warren with a Twin Stringer approach ramp and small stair. The bridge was designed, manufactured and installed by ourselves to replace an existing structure. The location of the bridge adjacent to the grade 2 listed Islip Mill is in an area of Outstanding Natural Beauty and the vibrant shade of green really works well in this setting.

Location

Islip Mill, Northampton

Dimensions

Overall length of 36 metres with a clear width of 2 metres.

Weight

21te

Client

PGR Construction Limited

Materials

The main hollow steel sections are hot rolled to BS EN 10210:2006 S355J2H with the plates and sections to BS EN 10025:2004 S355J2+N. A low maintenance Zinc Rich paint system was used in conjunction with a combined waterproofing and anti-slip decking system.
