A24 Broadbridge Heath Foot/Cyclebridge

Description

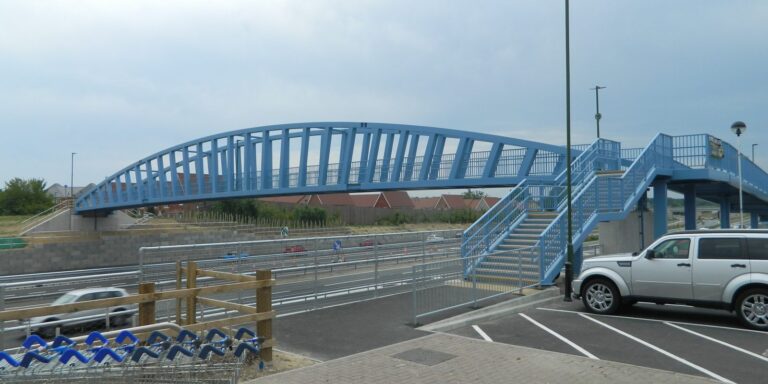

This large bridge structure was commissioned to provide access across the A24 for several large scale housing developments. A 57 metre ‘Sunburst’ Vierendeel truss main span is completed with 96 metres of Twin Stringer approach ramp and a 13 metre long staircase.

This DDA compliant bridge is painted an interesting vibrant blue which makes for an impressive addition to the road landscape .

Nusteel Structures designed the bridge superstructure with all manufacturing, delivery and installation processes carried out by our skilled directly employed teams.

Location

Horsham, West Sussex

Dimensions

Total length of 166 metres with a clear NMU width of 4 metres for combined pedestrian and cyclist use.

Weight

165te

Client

Breheny Civil Engineering

Materials

The main hollow steel sections are hot rolled to BS EN 10210:2006 S355J2H with the plates and sections to BS EN 10025:2004 S355J2+N. A Highways England Type 2 paint system was used in conjunction with a combined waterproofing and anti-slip decking system.
